ISOKING Glass Wool Pipe
High quality foiled glass tube cotton
Place to sell : N/A

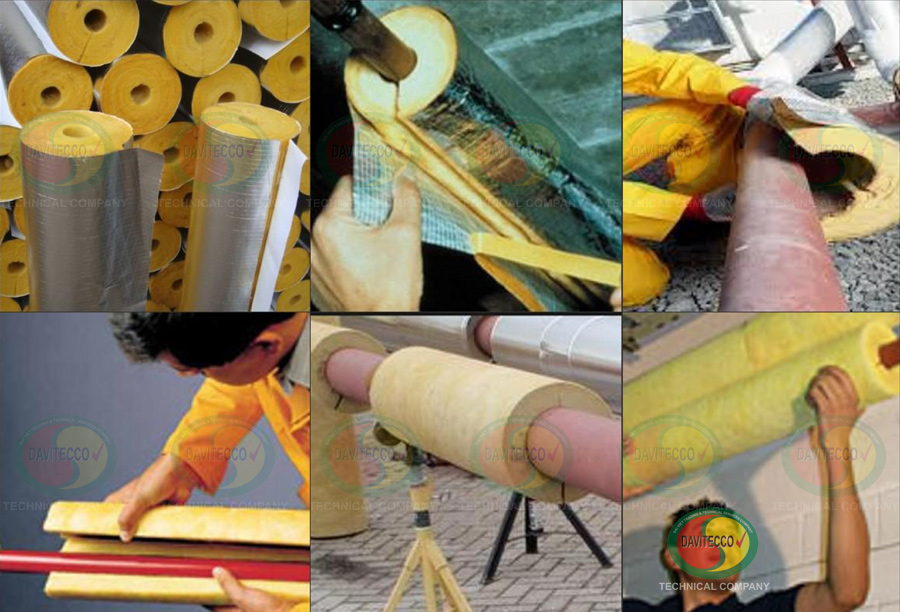

ISOKING Glass Wool Pipe With Aluminum Foil Facing
Thickness: 30-100mm
Density: 40-80kg/m3
Width:
Length: 1m
ISOKINGTM Glass Wool Pipe With Aluminum Foil Facing:
Inner Diameter: 20-529
ISOKINGTM Glass Wool Pipe With Aluminum Foil Facing Overview:
ISOKINGTM complete glass wool production lines employing latest-generation technology to manufacture boards, rolled blankets and pipes for residential and industrial thermal and acoustic insulation needs, in compliance with the top international standards (EN, DIN, ASTM).
At the system HOT END, the raw materials are dosed, mixed, melted, fiberized, impregnated with a special binder and formed into a primitive mat of very fine fiber glass. Continuous conveyors transport the mat to the COLD END of the plant for binder polymerization. The product is then cut to shape and packed for shipping.
ISOKINGTM glass wool production lines range from 5 to 700 tons/day capacity (100,000 to 1,500,000 tons/year), and are fully automated thanks to PLC and Scada systems.
All ISOKINGTM lines comply with the latest international environmental regulations.
ISOKINGTM Glass Wool Pipe With Aluminum Foil Facing Product Specification:
|
Dia (mm) |
Thickness (mm) |
||||||||
|
22 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
27 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
34 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
43 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
48 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
60 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
76 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
89 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
114 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
140 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
165 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
175 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
219 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
273 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
325 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
356 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
377 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
426 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
480 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
530 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
630 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
720 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
/ |
|
Density |
40kg/m3-80kg/m3 |
||||||||
ISOKINGTM Glass Wool Pipe With Aluminum Foil Facing Technical Parameters:
|
Property |
Test Method |
Specification |
|
Temperature range |
ASTM C411 |
Up to 233 oC (450 oF) |
|
Moisture absorption |
ASTM C1104 |
< 1.0% at 49 oC, 95% RH |
|
Corrosivity |
ASTM C665 |
Does not accelerate |
|
Mold resistance |
ASTM C665 |
No growth |
|
Surface burning Characteristics
Fire Test |
ASTM E84
BS 476 Part 6,7 AS 1530-3
|
Flame spread < 25 Smoke developed < 50 Class 0 Ignitability Index 0 Spread of Flame Index 0 Heat Evolved Index 0 Smoke Developed Index 1
|
ISOKINGTM Glass Wool Pipe With Aluminum Foil Facing Distinctive advantages:
• Excellent thermal, acoustical properties
• Light weight and easy to fabricate on job site
• Non-combustible and fire-retardant
• Very economical, especially when using thick layers of insulation
• Durable, life-time and termite proof
ISOKINGTM Glass Wool Pipe With Aluminum Foil Facing Applications:

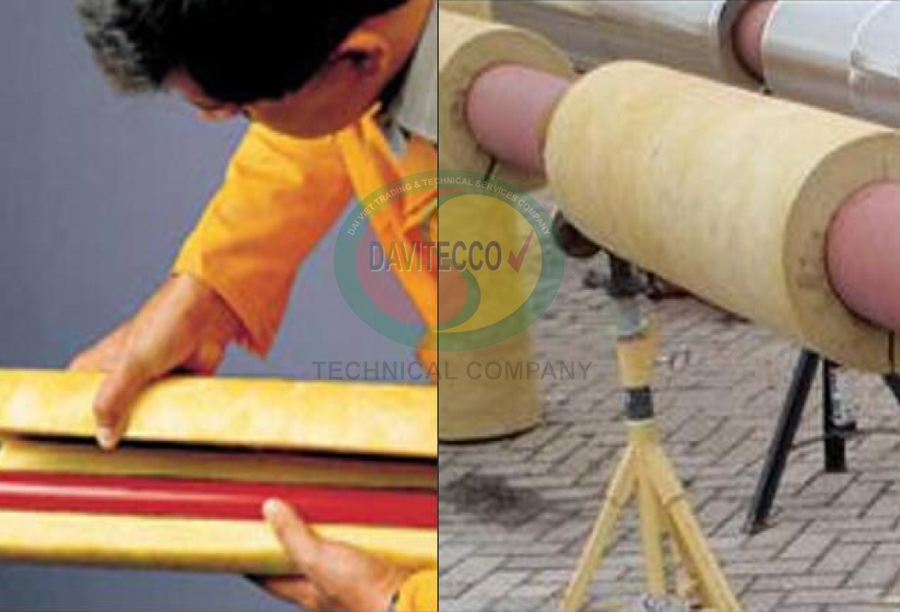

ISOKINGTM Glass Wool Pipe With Aluminum Foil is light and easy to install at office building, modern entertainment centre, roof, HVAC system and also other residential, industrial buildings such as:
• Walling and partitioning • Faced and external walls • Suspended ceiling
• Steel structures • Prefabricated houses • HVAC Duct works
Glass Wool Insulation Pipe
Length: 1m
Thickness: 30-100mm
Density: 40-80kg/m3
Width:
Glass Wool Insulation Pipe Overview:
ISOKINGTM complete glass wool production lines employing latest-generation technology to manufacture boards, rolled blankets and pipes for residential and industrial thermal and acoustic insulation needs, in compliance with the top international standards (EN, DIN, ASTM).
At the system HOT END, the raw materials are dosed, mixed, melted, fiberized, impregnated with a special binder and formed into a primitive mat of very fine fiber glass. Continuous conveyors transport the mat to the COLD END of the plant for binder polymerization. The product is then cut to shape and packed for shipping.
ISOKINGTM glass wool production lines range from 5 to 700 tons/day capacity (100,000 to 1,500,000 tons/year), and are fully automated thanks to PLC and Scada systems.
All ISOKINGTM lines comply with the latest international environmental regulations.
Glass Wool Insulation Pipe Specification:
|
Dia (mm) |
Thickness (mm) |
||||||||
|
22 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
27 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
34 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
43 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
48 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
60 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
/ |
/ |
|
76 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
89 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
114 |
25 |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
140 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
165 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
175 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
219 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
273 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
325 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
356 |
/ |
30 |
40 |
50 |
60 |
70 |
80 |
100 |
120 |
|
377 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
426 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
480 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
530 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
630 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
120 |
|
720 |
/ |
/ |
/ |
/ |
/ |
70 |
80 |
100 |
/ |
|
Density |
40kg/m3-80kg/m3 |
||||||||
Technical Parameters:
|
Property |
Test Method |
Specification |
|
Temperature range |
ASTM C411 |
Up to 233 oC (450 oF) |
|
Moisture absorption |
ASTM C1104 |
< 1.0% at 49 oC, 95% RH |
|
Corrosivity |
ASTM C665 |
Does not accelerate |
|
Mold resistance |
ASTM C665 |
No growth |
|
Surface burning Characteristics
Fire Test |
ASTM E84
BS 476 Part 6,7 AS 1530-3
|
Flame spread < 25 Smoke developed < 50 Class 0 Ignitability Index 0 Spread of Flame Index 0 Heat Evolved Index 0 Smoke Developed Index 1 |
Glass Wool Insulation Pipe Distinctive advantages:
€¢ Excellent thermal, acoustical properties
• Light weight and easy to fabricate on job site
• Non-combustible and fire-retardant
• Very economical, especially when using thick layers of insulation
• Durable, life-time and termite proof
Glass Wool Insulation Pipe Applications:
ISOKINGTM Glass Wool Insulation is light and easy to install at office building, modern entertainment centre, roof, HVAC system and also other residential, industrial buildings such as:
• Walling and partitioning • Faced and external walls • Suspended ceiling
• Steel structures • Prefabricated houses • HVAC Duct works
